JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar

ब्रांड नाम:	JIGUO
मॉडल संख्या:	एसजेजी -1080
एमओक्यू:	1
कीमत:	$22000-$30000
प्रसव का समय:	30
भुगतान की शर्तें:	एल/सी, टी/टी, मनीग्राम

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

पैकेजिंग विवरण:

फिल्म वाइंडिंग

आपूर्ति की क्षमता:

प्रमुखता देना:

semi-automatic blanking machine 1080x780mm

die cutting stripping machine 100 bar

JIGUO SJG-1080 blanking machine

उत्पाद का वर्णन

JIGUO SEMI AUTOMATIC BLANKING MACHINE FOR VARIOUS MATERIALS INCLUDING BOXES OF DIFFERENT SPECIFICATIONS, WINDOWS, EURO HOLES (BUTTERFLY HOLES), AND FRONT/BACK IMPOSITIONS DIE CUTTING STRIPPING

Product Description

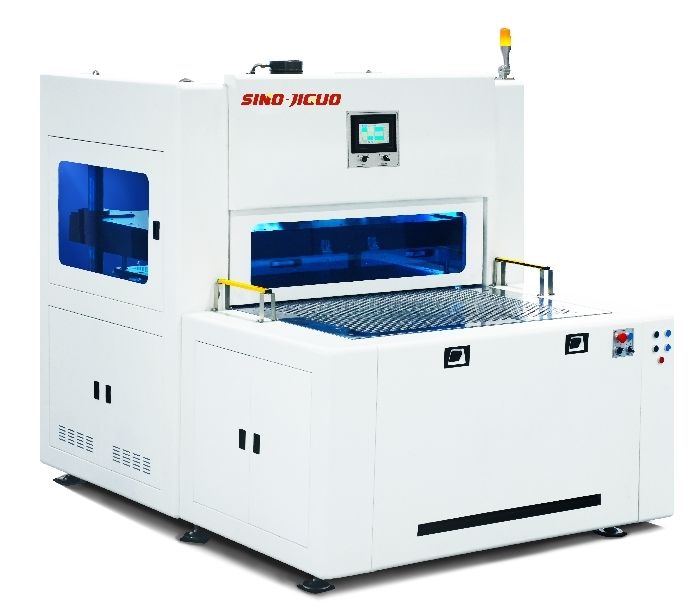

JIGUO SJG-1080 SEMI AUTOMATIC BLANKING MACHINE

Jiguo SJG-1080 semi-automatic waste stripping machine is a highly efficient waste stripping equipment that can perform one-time waste stripping on a variety of materials including paper boxes, windows, European-style holes (butterfly holes), front and back panels, etc.

Main Features

Demolding the entire panel in one go is simple and quick, significantly improving production efficiency.
Ejector-based placement allows for flexible handling of various production needs. No molds are required, significantly reducing operating costs.

High-precision linear guides and servo motors ensure smooth and precise movement.
The hydraulic system utilizes a variable-frequency motor and oil-cooling fan to ensure constant operating pressure.
The frame-type support base ensures precise blanking and ensures load-safety.

Multiple safety features, including a CE-compliant safety shield, a safety sensor switch at the feeder, and dual-button operation, ensure personal safety during operation.
A user-friendly retractable pedal and a user-friendly touchscreen interface make daily setup quick and easy.

Technical Specifications

Model	SJG-1080
Max.Stack size	1080*780mm
Min. Stack height	80mm
Waste Removal Speed	5Times/ming
Max.Pressure	100 Bar
Overall Dimensions	2100x1760x1660mm
Net Weight	2580kg
Supply Voltage	380V
Frequency	50/60Hz
Total Power	4kw
